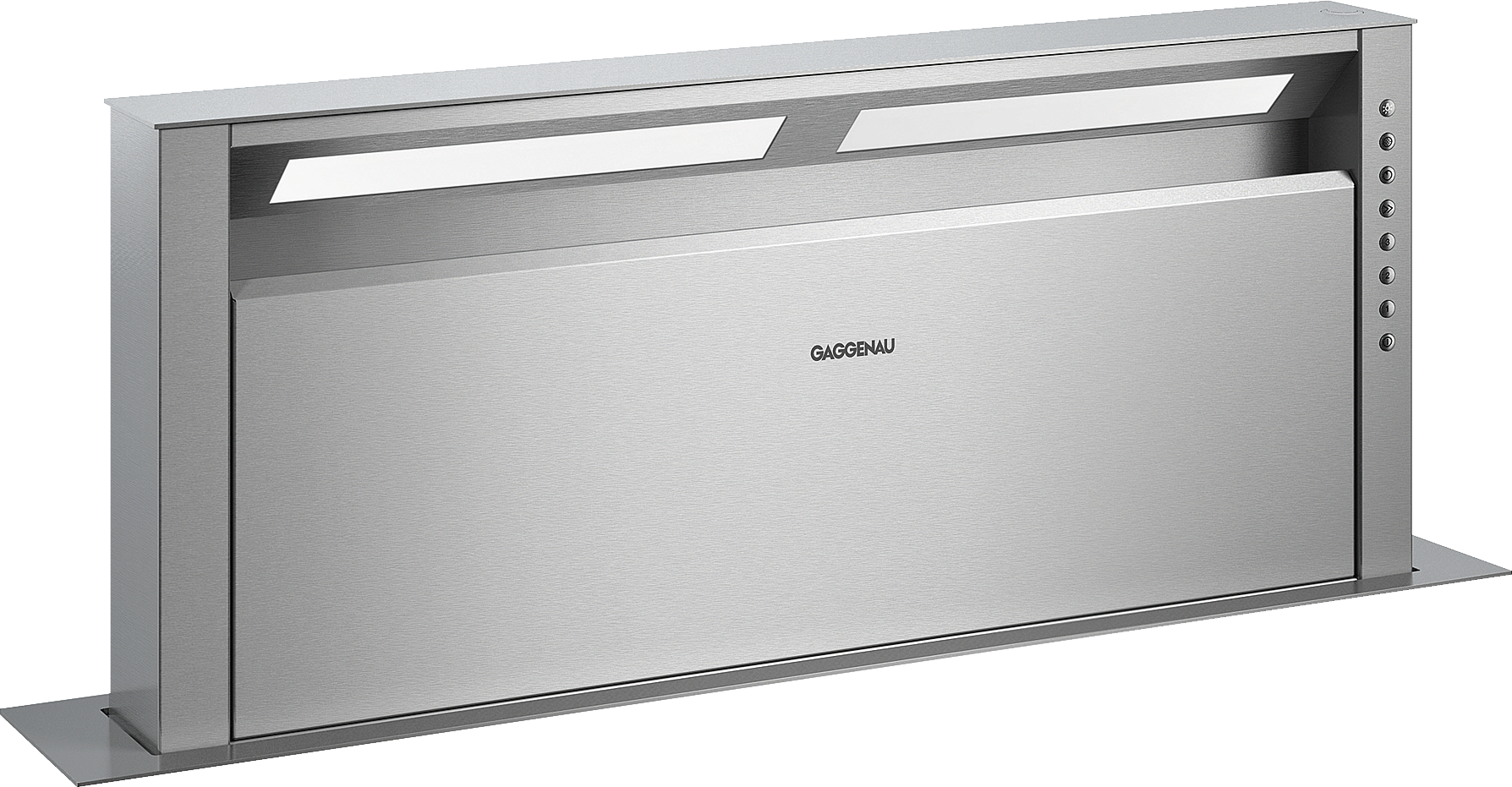

Gaggenau 36" Stainless Steel Rectractable Downdraft Ventilation

Product Overview

The extendable backsplash ventilation disappears completely into the countertop when not in use. Vapors and odors are quietly and effectively extracted directly where they arise – an ideal solution for kitchen islands and open spaces. Three power levels plus an intensive mode ensure fresh air, while a dimmable LED surface light fully illuminates the cook-top. Both flush-mounted and conventional installations are possible.

Main Facts

Extendable table ventilation, when not in use can be completely lowered into the worktop

Can be perfectly combined with other Vario 400 series products

Dimmable, neutral white surface LED light for ideal illumination of the whole cooktop

Precision crafting of 1/8-inch stainless steel

For surface mount installation with a visible edge or for flush installation

Comes without blower, can be combined with Gaggenau's highly performing and highly efficient brushless DC (BLDC) blowers

Output

For CFM information, refer to the blower overview in the Models & Dimensions catalog.

Features

Three electronically controlled power levels and an intensive mode.

Grease filter saturation indication by flashing light

Cartridge-type filter, dishwasher-safe.

Neutral white surface LED light (3600 K), continuously dimmable.

Lamp output 4 x LED 6medium power 5W stripe.

Illuminance 200 lx.

No duct connection pieces are included. Must order AD724040 transition to 5" round duct to vent downwards/to left or to the right side and AD724041 adaptor if venting to left or right side of VL 414 downdraft.

Rating

Total rating: 65 W.

Connecting cable 5'6" with plug.
