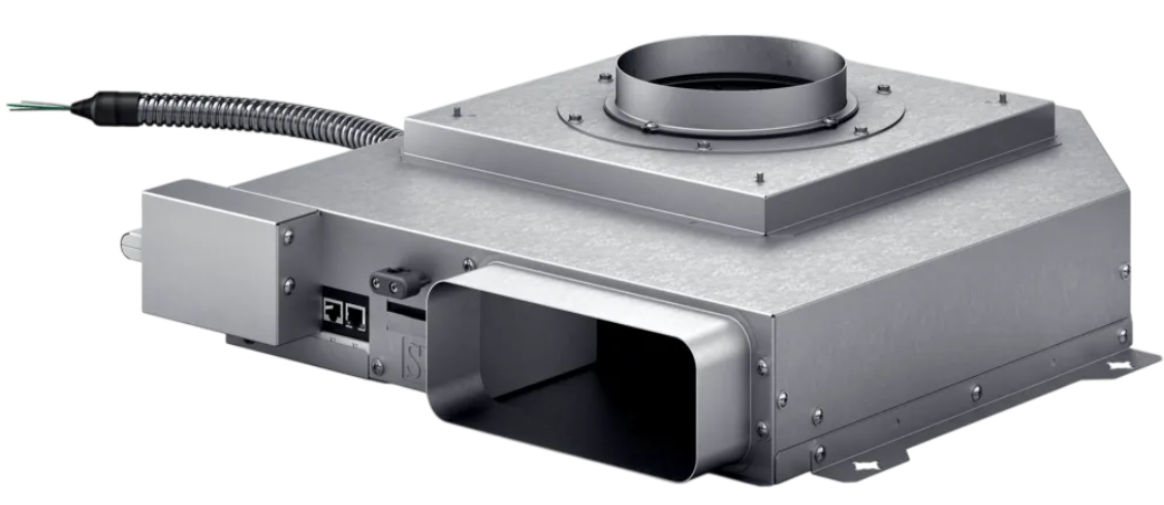

    Gaggenau 400 Series Remote Blower

    Gaggenau

    Model #:

    AR403722

    Model #: AR403722
    897671
    Gaggenau
    $99,999.00

    At a Glance

    Product Dimensions 6.56"h x 20.13"w x 15.06"d

    Remote fan unit in combination with motorless appliances 400 series and Vario downdraft ventilation 200 series. Connection to the respective appliances via network cable. When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.Read More

    Call for Best Price

    Availability

    Call for Availability For home delivery or scheduled pickup
    My Store:30621 Canwood St Agoura Hills CA United States 91301
    Add zip code to view locations nearest to you

    Please contact our store for more details and availability timelines.

    View Delivery & Pickup OptionsAdd Zip Code
    On Display at Agoura Hills 0
    On Display at La Quinta 0
    On Display at Lomita 0
    On Display at Moorpark 0
    On Display at Oxnard 0
    On Display at Santa Barbara 0
    Request More Info

    Get to know this product.

    Product Overview

    Product Overview

    Efficient BLDC technology. Compact and space-saving installation in a 10 cm high plinth.

    Output

    Performance output level 3/Intensive: Air output according to EN 61591. Sound power and sound pressure depending on built-in situation.

    Air extraction: 700 / 875 m³/h.

    Features

    3 electronically controlled power levels and 1 intensive mode.

    Fan technology with highly efficient, brushless DC motor (BLDC).

    Steel housing, zinc-plated.

    Pipe connection pieces on intake side: 1 x DN 150 round.

    Pipe connection pieces on output side: 1x DN 150 flat duct.

    Retaining bracket for installation on the ceiling or side of a cupboard enclosed.

    Planning Notes

    Connection to the respective appliances via network cable.

    Installation in the plinth with cut-out for the air ducting in the furniture base.

    When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

    Connection

    Total connected load 170 W.

    100 - 120 V / 50 Hz.

    Total amps: 2 A.

    Connecting cable 1.5 m without plug.

    Network cable 2 m.

    Useful Documents
    Specification Sheet
    Installation Instructions
    Additional Installation
    Specifications

    General Specs

    Appliance ColorStainless Steel
    Color Finish NameStainless Steel
    Width (in.)20.13
    Depth (in.)15.06
    Height (in.)6.56
    ColorStainless Steel
    Appliance Fit Width (in.)20
    Range Hood Blower TypeIn-Line
    Duct Size (in.)6" Round
    Maximum CFM440
    Voltage120
    Frequency60
    Amp2
